Frames
Custom welded frames and supporting structures prepared for the final system.
Fabrication Capability
Custom Aluminum Welding
Welded aluminum frames, gates, railings and custom assemblies produced from approved drawings with fixture, fit, finish and packing requirements considered together.
Drawing-based assembly
Built to approved geometry
Fixture planning
Alignment considered by project
Integrated fabrication
Cut, machine, weld and finish
Export preparation
Assembly grouping and packing
Welding scope
From prepared components to complete assemblies
This page focuses on welded fabrication rather than manufacturing in general. Each assembly is reviewed for geometry, interfaces, visible weld areas and later surface finishing.
Architectural Assemblies
Gates, railing sections, screens and outdoor product components.
Subassemblies
Prepared parts joined and organized for later installation or final assembly.
Finish Coordination
Visible surfaces and finishing requirements considered in the fabrication route.
Production route
Controlled from prepared parts to final fit
Drawing revision, component preparation, fixture approach and finishing sequence are reviewed before production.
-
01 Drawing and assembly review
Interfaces, dimensions and visible areas are identified.
-
02 Cutting, machining and fit-up
Components are prepared for the approved assembly.
-

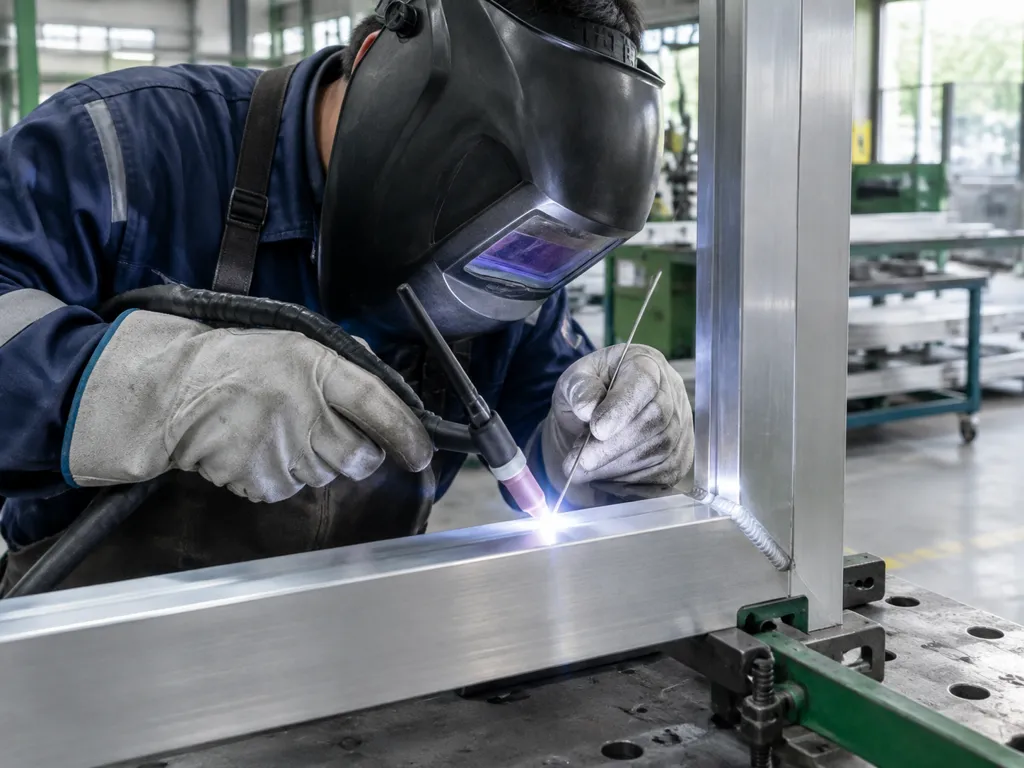

03 Welding and in-process checks
The assembly is joined and relevant geometry checked.
-
04 Finishing, inspection and packing
The agreed downstream route is completed before delivery.

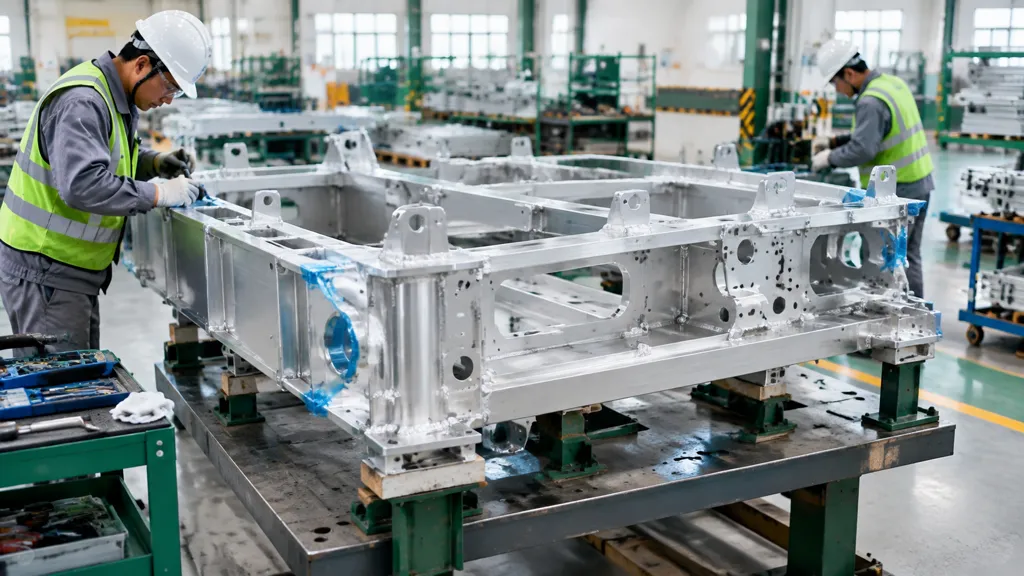

Assembly output
From fixture-controlled joining to installation-ready groups
The delivery state can range from welded subframes to finished product sections. Geometry, visible weld condition, coating and shipment split are planned around that final state.
Assembly engineering
Plan the joint, fit-up and final appearance together
Welding is one part of an assembly route. Component preparation, access, sequence, distortion risk, visible weld expectations and later finishing should be reviewed before production.
Joint & Access
Drawings should show joint location, weld access, required faces and any areas that must remain clear.
Fixture & Sequence
Assembly datum, orientation and welding sequence are considered to manage fit and dimensional movement.
Weld Appearance
Identify visible areas and whether welds remain as produced or require a specified post-weld appearance.
Finish After Welding
Color, coating, masking and surface preparation must be coordinated with the completed assembly.
Common assembly types
Welded and hybrid aluminum products
The appropriate joining method depends on service, access, appearance, transport and installation. These output families can include welded, mechanical or hybrid connections as defined by the approved drawing.
Gates and access frames
Outer frames, infill supports, hinge or operator areas and hardware interfaces.
Frames, completed leaves or grouped gate assemblies.
Railing and fence sections
Posts, rails, pickets, brackets and transitions prepared for consistent section geometry.
Welded panels, profile sets or hybrid installation sections.
Screens and facade frames
Perimeter frames, laser-cut infills, mounting tabs and concealed connection areas.
Framed panels or labeled project sets.
Pergola subassemblies
Frame members, end details, connection plates and prepared roof-system components.
Subframes, connection modules or installation kits.
Equipment and support frames
Custom profile structures, brackets, plates, mounting interfaces and service openings.
Bare assemblies, finish-ready frames or finished units.
Kitted structural groups
Welded subframes combined with removable members, fasteners and installed hardware.
Grouped by drawing, module or installation sequence.
Joining and assembly definition
Define the joint, the assembly and the delivery split
Not every connection has to be welded. The assembly drawing should distinguish permanent welded joints, removable fasteners, installed hardware and site connections, then define how the finished structure is supplied.
| Planning area | Information to show | Production impact |
|---|---|---|
| Connection strategy | Welded joints, bolts, screws, rivets, inserts, removable members and site connections. | Clarifies permanent, serviceable and installation-stage interfaces. |
| Component preparation | Cut lengths, miters, joint preparation, holes, slots, machined ends and hardware features. | Coordinates fit-up and reduces rework after the assembly is joined. |
| Assembly geometry | Overall size, squareness, diagonals, datums, mounting points and mating components. | Defines fixture references, critical checks and the final fit requirement. |
| Visible condition | Visible weld areas, required post-weld appearance, cleaned or blended zones and hidden faces. | Aligns weld access, appearance work and later surface preparation. |
| Finishing interfaces | Coating system, masking, drainage, threads, contacts and areas finished before or after joining. | Establishes the correct fabrication and finishing sequence. |
| Delivery split | Complete assemblies, welded subframes, removable components, hardware kits and package groups. | Balances freight, handling, site access and installation order. |
Useful starting package: assembly drawing, individual part drawings, material or profile details, mating interfaces, critical dimensions, joint requirements, finish and shipment split.
Quality checkpoints
Inspect the joint and the finished assembly
The project drawing and any stated welding requirements define acceptance. Reviews can include incoming parts, fit-up, assembly geometry, visible condition and preparation for the next process.
Component check
Part identity, cut condition and joint preparation are considered before joining.
Fit-up check
Alignment, gaps, fixture location and access are reviewed at the assembly stage.

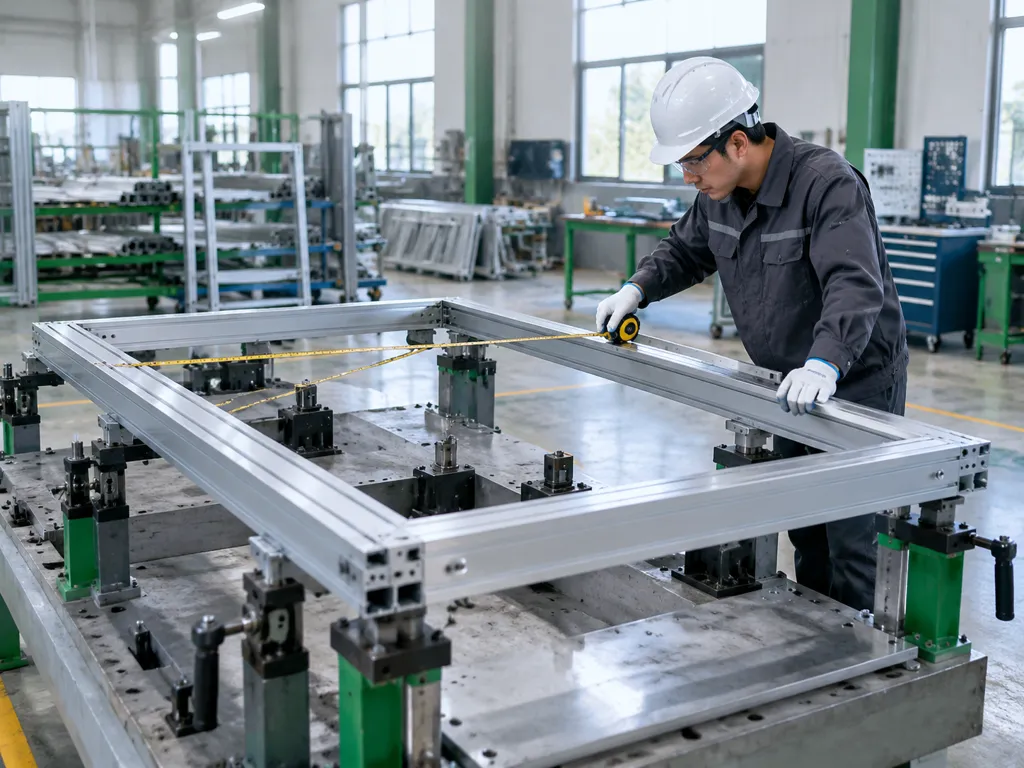

Geometry check
Specified overall dimensions, diagonals, mounting points and mating interfaces are checked.
Visual and finish check
Required weld appearance and finish-ready surfaces are reviewed before coating or packing.
Assembly approval points
Approve the assembly in stages
A staged review can catch interface or appearance issues before they are locked into a finished assembly. The required hold points are agreed for the project.
Prepared components
Part identity, cut and machined condition, joint preparation and installed inserts are checked before fit-up.
Fixture and fit-up
Datums, gaps, alignment, diagonals, hardware clearance and access are reviewed before joining continues.
Post-weld assembly
Specified geometry, visible weld condition, mating interfaces and required correction or appearance work are reviewed.
Finish-ready release
Masking, drainage, removable hardware, surface preparation and the shipment split are confirmed before finishing.
Information for a welding project review
What to send
- Assembly drawing and individual part drawings
- Material and profile information
- Critical dimensions, interfaces and visible faces
- Joint callouts and applicable project requirements
- Required fit-up, post-weld or finish-ready approval points
- Quantity, finish, hardware and shipping split
What we review
- Component preparation and assembly sequence
- Fixture, access and distortion considerations
- Geometry, weld appearance and inspection points
- Mechanical joining and installed hardware
- Shipping format and installation grouping
- Staged approval, change status and production release
Aluminum Welding FAQs
What products can be reviewed?
Typical reviews include gates, frames, railing sections and custom aluminum assemblies based on project drawings.
Can you handle other processes in the same order?
Cutting, CNC machining, surface finishing, assembly and packing can be coordinated in the overall production plan.
How should weld appearance be defined?
Mark visible and non-visible weld areas, joint locations and any required post-weld blending or finish condition. An approved visual reference helps when appearance is important.
Can assemblies be supplied as subframes or installation kits?
Yes, subject to project review. State the preferred shipping split, labels, hardware grouping and installation sequence so the delivery format can be planned.
Which welding standards do you support?
Send the required standard and project specification for confirmation rather than assuming a general welding qualification applies.
