A practical overview of anodizing, electrophoretic coating, powder coating, PVDF coating, wood grain transfer and polishing, coordinated with fabrication, appearance requirements and final delivery.
Finish matched to requirements
References confirmed before order
Finish planned after processing
Agreed criteria guide checks
Finish overview
These routes serve different appearance, exposure and fabrication needs. The final selection is reviewed from the aluminum substrate, end use, governing specification, approved reference and required post-processing.
Retains a metallic aluminum character while creating a project-defined anodized surface. Buyers should identify the alloy, governing standard or class, color, visible faces and acceptable shade range.

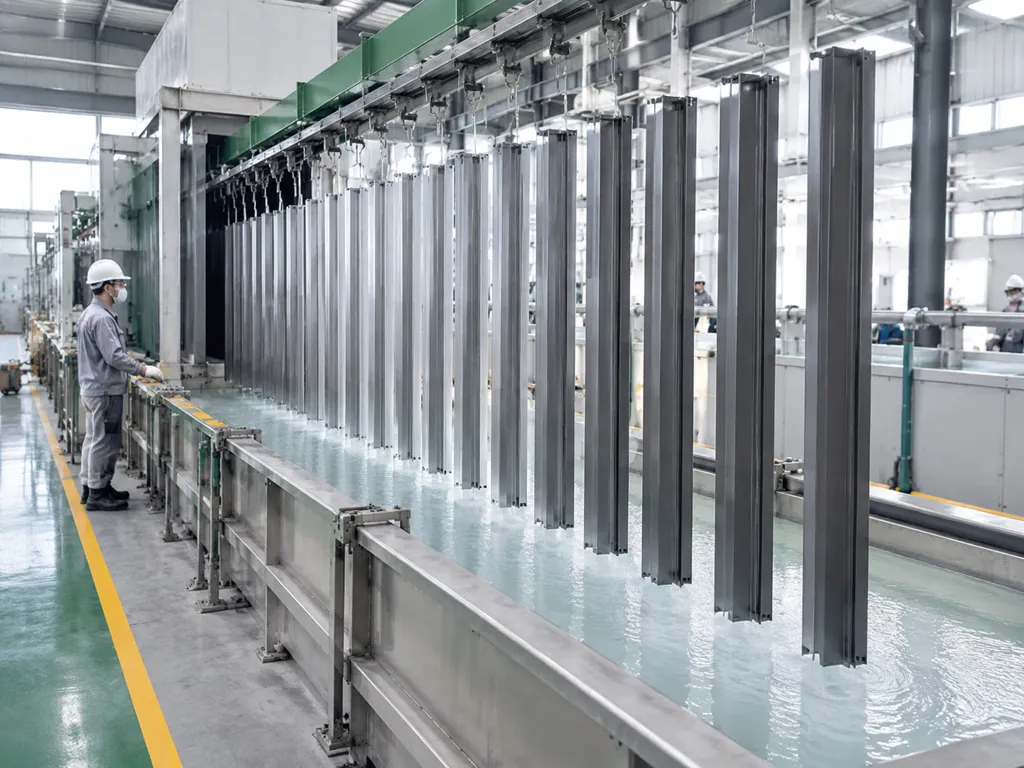

A deposited coating route often selected for an even, smooth appearance. Confirm the substrate condition, color, gloss, exposure and required performance specification.
Supports a wide range of colors, gloss levels and textures for profiles, panels and fabricated assemblies. Define the color reference, service environment, visible faces and applicable coating requirement.

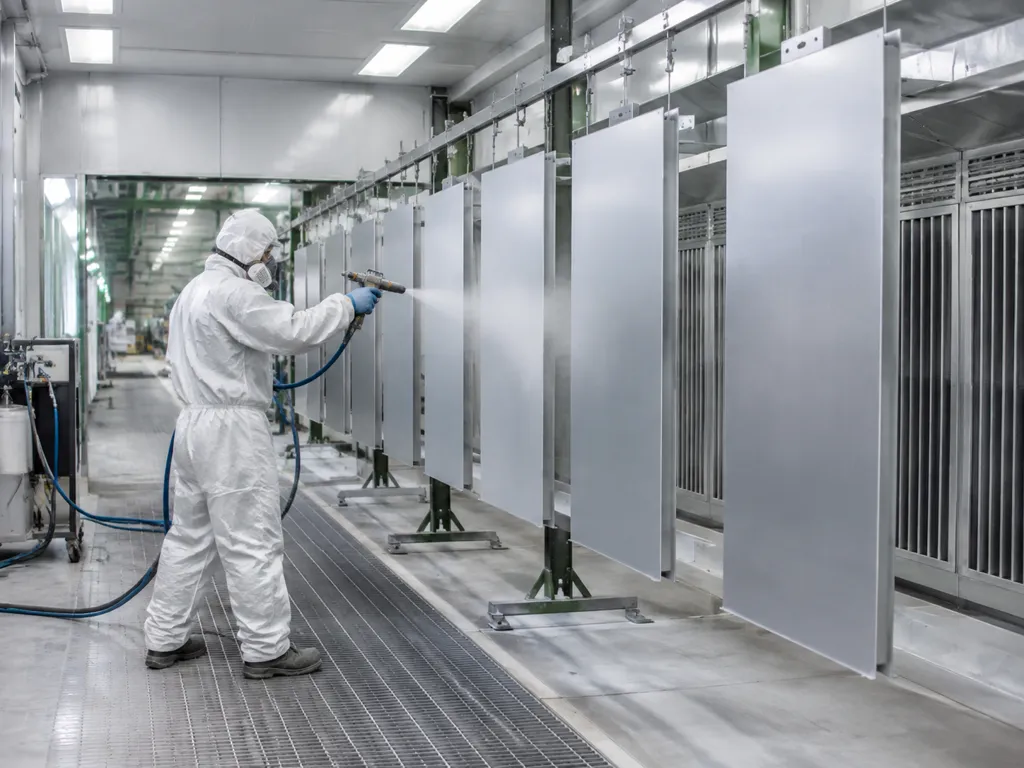

A specified liquid coating system commonly considered for demanding exterior architectural use. State the coating system, color, gloss, exposure and governing test requirements.

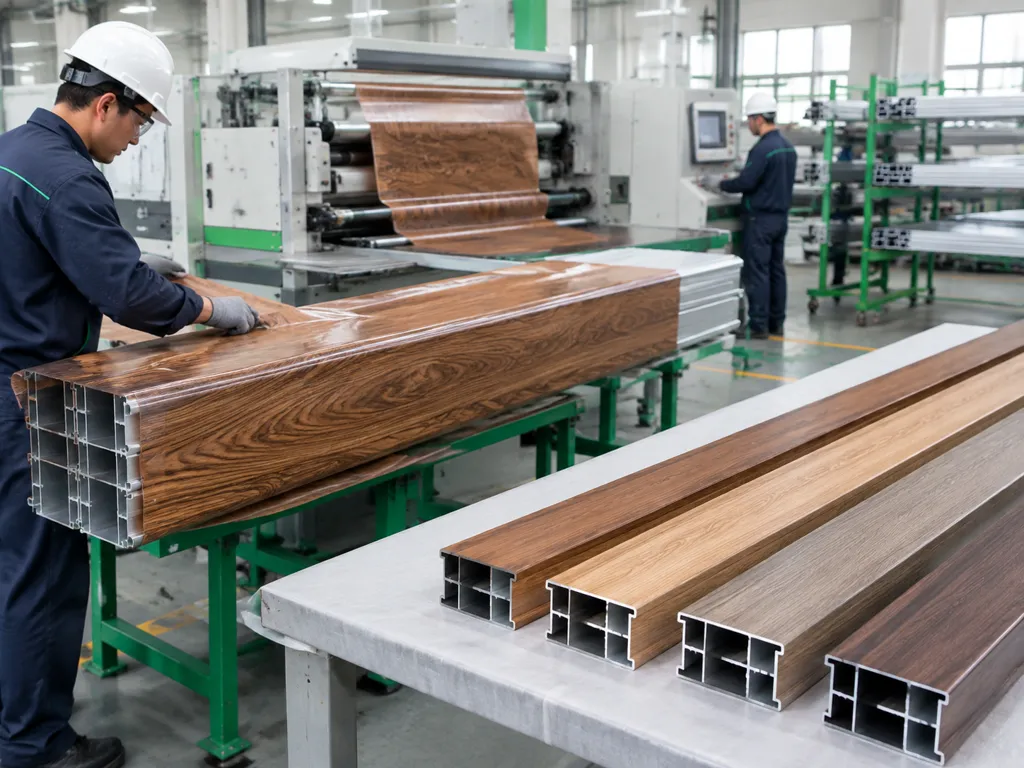

Creates a wood-look decorative surface. Select the pattern, base tone, gloss, orientation and physical approval sample.

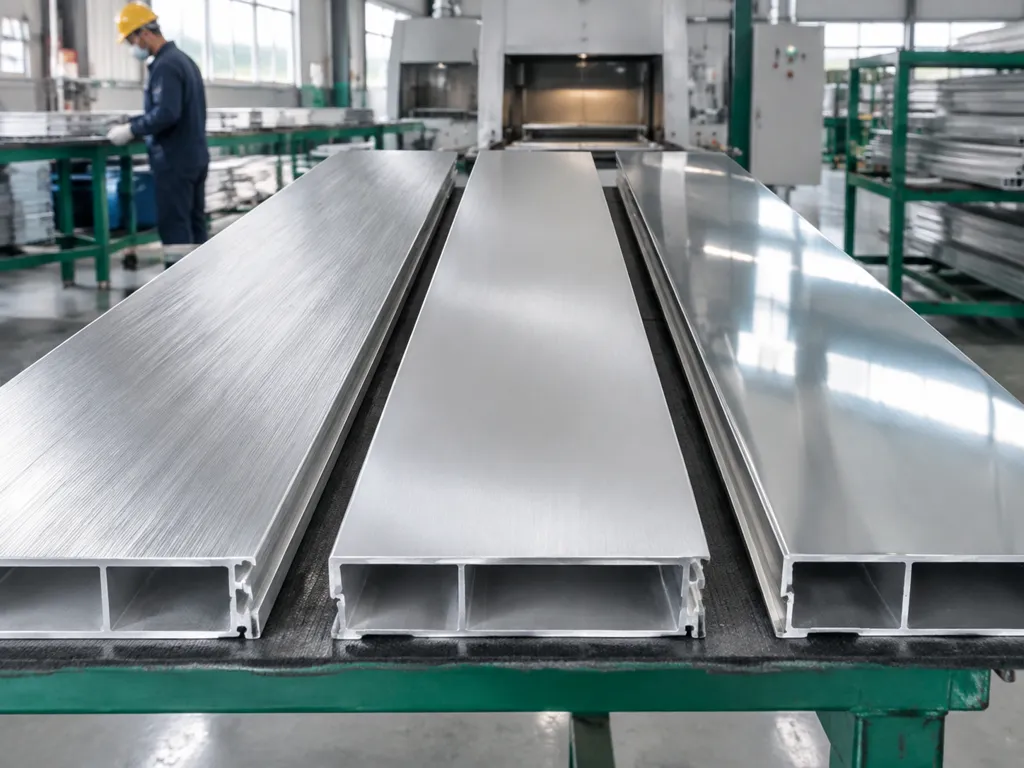

Uses abrasive refinement for directional, satin or reflective appearances. Mark visible faces, grain direction, edges and target reference.
Chemically brightens the surface before a compatible downstream treatment. Results depend on alloy, starting condition and the later finish sequence.
Finish production
Pretreatment, racking, coating or treatment, curing where applicable, appearance review and surface protection are planned as one route. Exact steps vary by the selected finish and project specification.
Part and product scope
Profiles, panels, machined parts and joined assemblies create different racking, drainage, masking and handling conditions. Final capability is confirmed from the actual part and selected process.
Long sections, frame members and profile components reviewed for visible faces, contact points and cut-end condition.
Flat or formed panels considered for face quality, edge coverage, pattern orientation and handling protection.
Threads, bores, fits, electrical contacts and hardware interfaces identified before treatment or coating.
Welds, joints, cavities, drainage paths and final assembly size reviewed as part of the finish route.
Finish selection
The suitable route depends on where the component is used, which faces are visible, how it connects to other parts and what specification governs acceptance.
| Finish route | Typical selection goal | Information to confirm |
|---|---|---|
| Anodizing | Metallic appearance with a project-defined anodized surface | Alloy, standard or class, color, visible faces and acceptable variation |
| Electrophoretic coating | Smooth, uniform deposited coating and specified appearance | Color, gloss, exposure, substrate preparation and governing specification |
| Powder coating | Color, gloss or texture on products and fabricated assemblies | Color reference, environment, visible faces, masking and performance requirement |
| PVDF / fluorocarbon | A specified coating system for demanding exterior architectural use | System specification, color, gloss, exposure, pretreatment and test requirements |
| Wood grain transfer | Decorative wood-look pattern with an approved visual reference | Pattern, base color, gloss, visible faces, sample and orientation |
| Mechanical polishing | Directional, satin or reflective mechanically worked surface | Finish reference, grain direction, visible area and edge expectations |
| Chemical polishing | Chemical brightening before a compatible downstream treatment | Alloy, starting condition, target appearance and later finish sequence |
Specification and acceptance
A finish name alone does not define the result. The approval package reference, visible faces, protected interfaces, inspection method and packing condition should be agreed together.
Name the finish system, color or pattern reference, gloss or texture, governing specification and any physical approval sample.
Mark primary visible faces, permitted racking areas, cut edges, cavities and areas hidden after installation.
Identify threads, fits, grounding points, electrical contacts, drainage paths and hardware interfaces that require masking or another condition.
State viewing conditions, acceptable variation, project tests and the protection needed through assembly and shipment.
| Review stage | What may be checked | Defined by |
|---|---|---|
| Incoming part | Alloy or substrate, completed fabrication, surface damage, contamination and finish readiness. | Drawing, material record and agreed starting condition. |
| Process setup | Racking orientation, drainage, masking, visible faces and process sequence. | Approved surface map and finish route. |
| Finished appearance | Color, gloss, texture, pattern direction, polish direction and agreed visual limits. | Color code, specification or approved physical sample. |
| Functional areas | Coverage, masked points, threads, fits, contacts and mating interfaces. | Part drawing and interface requirements. |
| Release and packing | Specified tests, surface separation, protective material, labels and assembly grouping. | Project inspection and packing plan. |
Selection inputs
Color is only one input. Exposure, cleaning, touch points, batch continuity and the way components meet each other can change the suitable finish specification.
Projects can be reviewed for anodizing, electrophoretic coating, powder coating, PVDF or fluorocarbon coating, wood grain transfer, mechanical polishing and chemical polishing. Availability and production route are confirmed against the actual part and specification.
Provide the applicable color reference, gloss or texture requirement, visible faces and any available approved sample.
The sequence depends on cutting, machining, welding, visible edges and the finish system. Send the completed component drawing so these operations can be planned together.
Alloy, substrate condition, geometry, process and viewing conditions can influence appearance. Define an approved reference and acceptable range when visual matching is important.
These requirements must be reviewed against the selected finish and project specification. Include any required values or standards in the RFQ.
